RAD Rope Adjustment DeviceRP815/KT815

RAD Rope Adjustment Device

The RAD ‘Rope Adjustment Device’ is a multi-functional device which can be used as part of a work-positioning lanyard (for 10.5 - 12.7mm rope). The RAD can also be used for ascent, descent, work-positioning/restraint, belay and progress capture. The ‘squeeze style’ device makes smooth adjustment easy, while the spring-loaded flip down handle allows easy use, especially in descent mode.

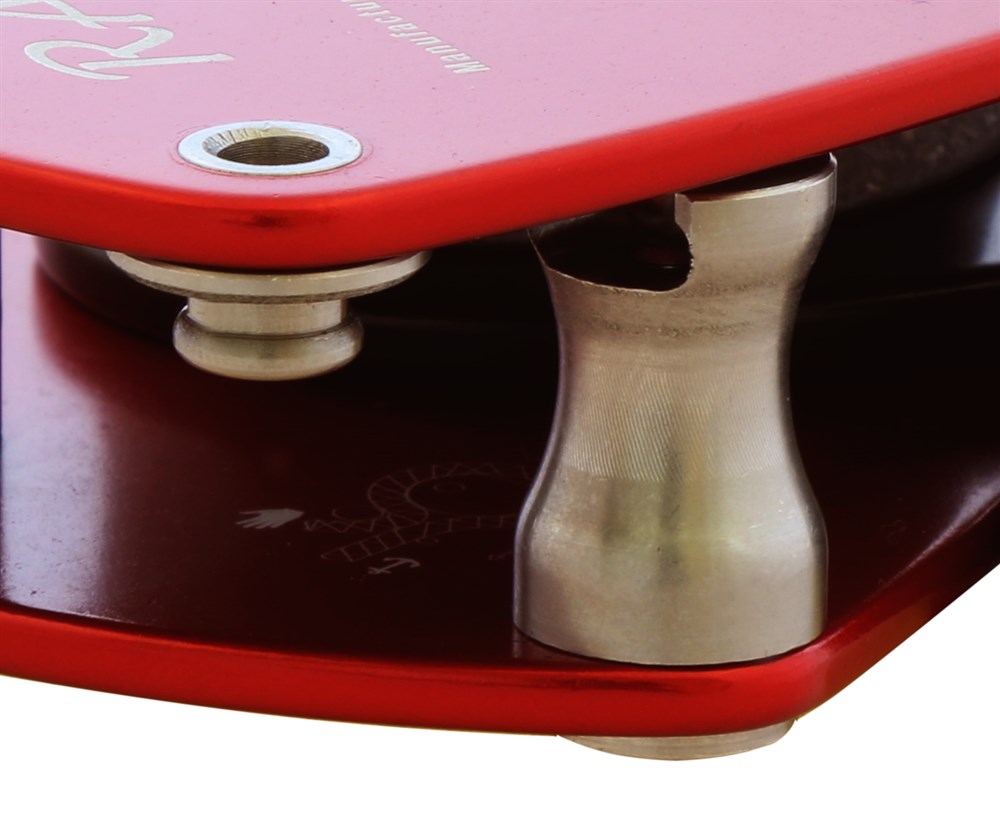

The RAD can be supplied as an individual device* which can be fitted with rope and a choice of connectors. The RAD now features a new top bollard, which allows the user the choice of fixing the side plate in place (in line with Lanyard-related standards), or removing the captivation screw, allowing the front plate to be swung open,for mid-line attachment. The swinging side plate is particularly useful when the device is in used in descent/ascent.

*Available outside the EU ONLY.

Industries

Industrial Height Safety Rope Access Edge Management Search & Rescue

Technical Information

Rope diameter range (mm)10.5-12.7
(WLL) Working Load Limit (kg)200
(WLL) Working Load Limit (lbs)440
Serial numberingAs standard
FinishAnodised

Approved Standards

EN 12841, EN 358
