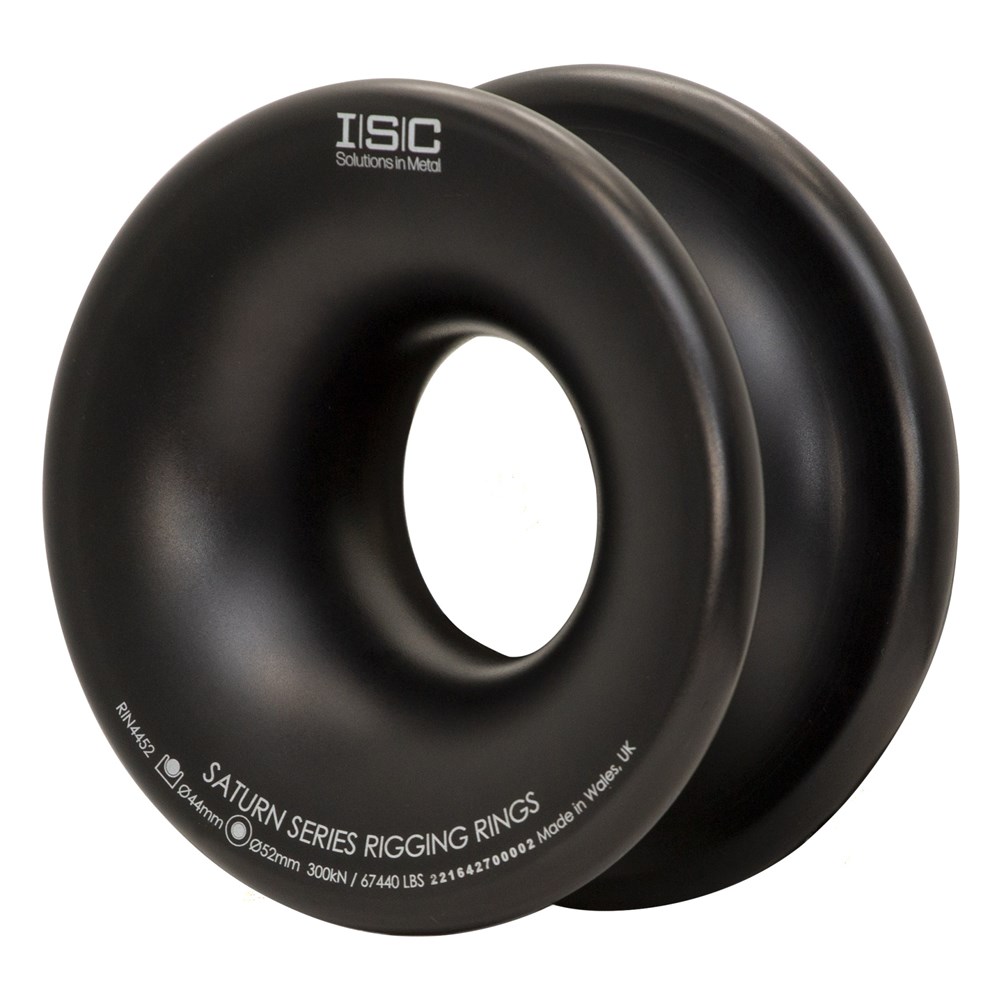

Saturn Series Rigging Ring- LargeRIN4452A

Click and drag to rotate, shift or ctrl click to move, scroll mouse wheel to zoom

SATURN Series Rigging Rings are CNC Machined from solid Aluminium, with smooth radiused rope surfaces.  The rings have a Hard-Anodised coating for durability and a polished, low-friction finish.

ISC SATURN Rings are available in three sizes and can be used in a variety of rigging configurations.  SATURN Rings can also be spliced in to anchor slings by the supplier/user and used to create single/multiple redirects, to tailor the friction in a rigging system. Rigging rings are versatile, low maintenance and easy to inspect.

Overall Diameter  138mm (5.4")

Inner Diameter  52mm (2")

Groove Radius (rope path)  44mm (1.73")

WLL  60kN (13488lbf)
