RED Back up (Stainless)RP892E

Click and drag to rotate, shift or ctrl click to move, scroll mouse wheel to zoom

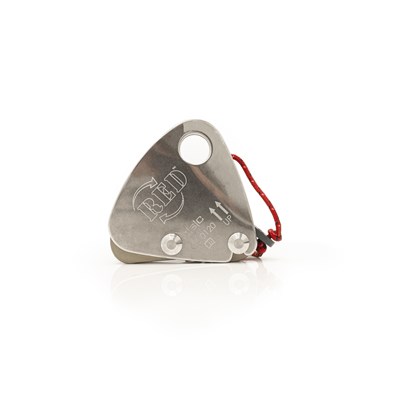

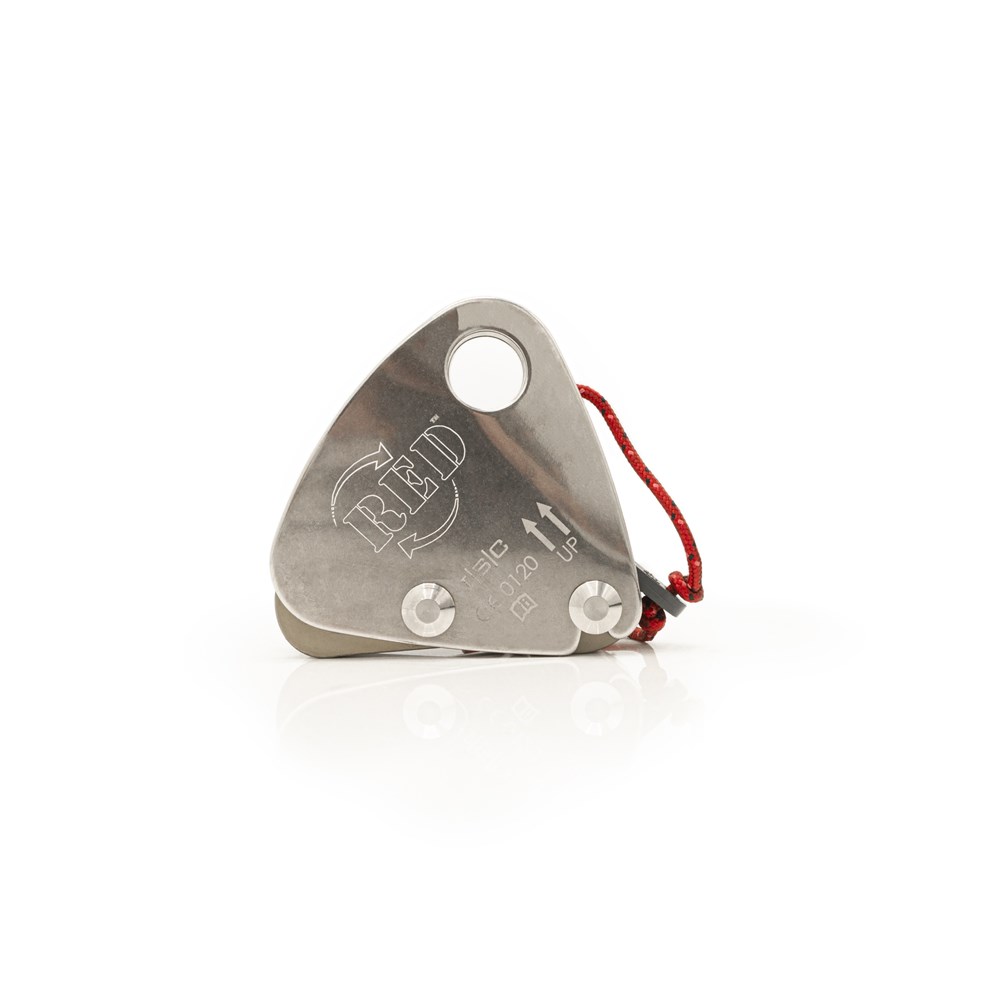

The RP892E RED Back up has Stainless Steel side plates for improved resistance in harsh environments.

The RED's cams have a positively locking spring, which means that the device is self-parking rather than self-tailing. This is important for Rope Access work techniques as they require the back-up device to be positioned so as to reduce fall factors to a minimum.

The RED makes use of 'Rotational Braking' which means the device rotates clockwise creating friction and resistance, which then results in very effective automatic braking in the event of a sudden pull on the cows-tail such as might occur during a main line failure.

The Popper device is a breakaway release clip, which provides a secondary attachment point for the tow cord. When used during normal positioning activity, this secondary attachment point allows the user to tow the device directly downwards. In a panic situation, the popper clip is designed to release under load and mitigate against uncontrolled towing of the device.

*Standard (fixed) tow cord & non-tow cord versions also available.





Industries

Technical Information

Rope diameter range (mm)10.5 - 11mm (3/8 - 7/16")
Number of persons2
(WLL) Working Load Limit (kg)240
(WLL) Working Load Limit (lbs)529
Serial numberingAs standard
Cam materialAluminium
Body finishPolished

Approved Standards

EN12841
