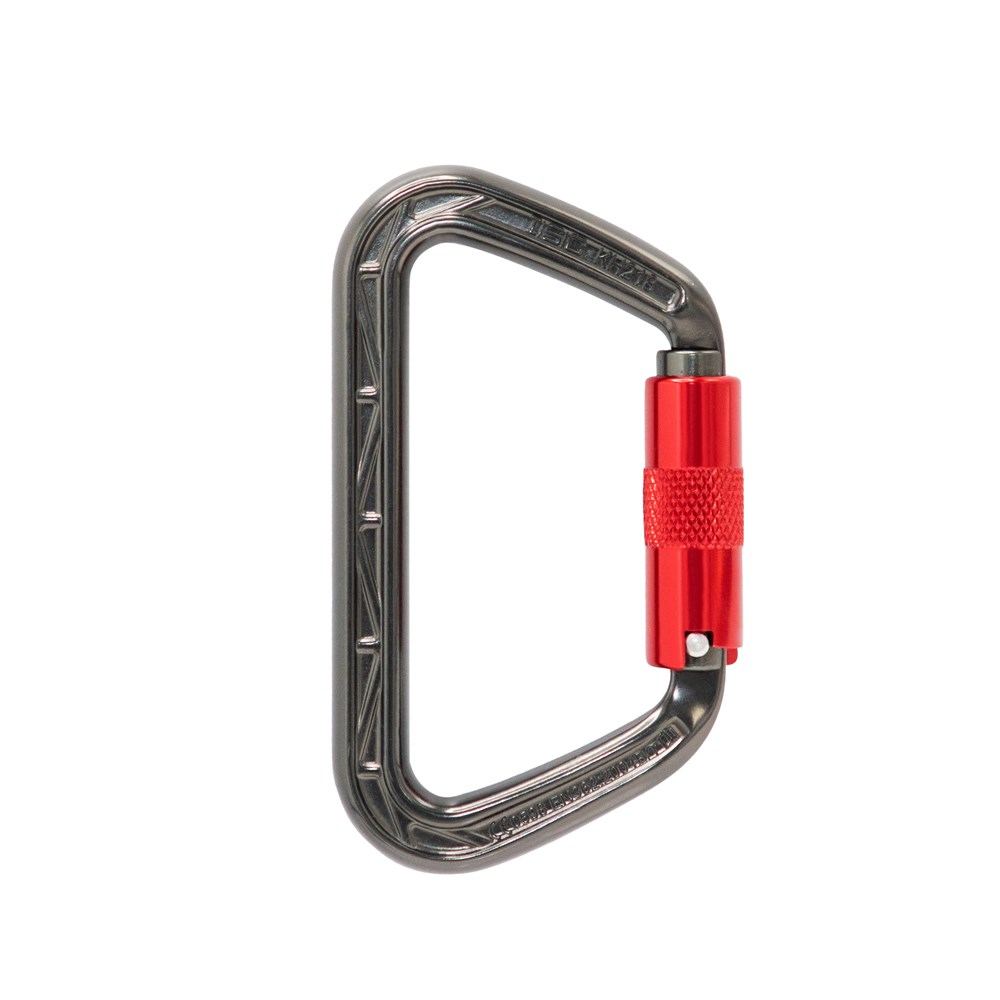

The "Wizard" range represents the strongest karabiners we manufacture in both Steel & Aluminium, with minimum breaking strengths (MBS) ranging from 45kN to 70kN. The Aluminium Wizard is a high strength, light-weight Karabiner. Its shape is designed to bias the load towards the spine– the strongest part of the Karabiner.
Gate types:
SG ScrewgateTL Twistlock (2-way)SS Supersafe (3-way)TL Twistlock ANSI SS Supersafe ANSI(please see datasheet for part code information)
(MBS) Minimum Breaking Strength (kN)45 (MBS) Minimum Breaking Strength (lbf)10116 Gate opening gap (mm)26 (Standard Screwgate model) Gate opening gap (inches)1 Nose typeBlind nose Captive pinAvailable on request ANSI compliant versionAvailale on request Serial numberingAs standard FinishAnodised Weight (grams)115 (Standard Screwgate Model) Weight (ounces)4 Height (mm)128 Height (inches)5 Width (mm)74 Width (inches)2 7/8 Thickness (mm)18 Thickness (inches)3/4
CE EN 362:2004B/TMeets: NFPA 2500 (1983) (22ED)GANSI Z359.12 2019 version also available
Captive pin available on standard (non-ANSI) models. Pin supplied loose, for retro-fitting.
